DNA Base Excision Repair (BER)

Michael Kubal, Computation Institute, University of Chicago


DNA bases can be damaged by oxidation, deamination ,or akylation. The DNA repair process of BER consists of the following 5 steps.��

1)          The lesion in the DNA caused by the damaged base is detected by a glycosylase that pinches the DNA. A damaged base forms an unstable bond with the base on the other strand of DNA. When the glycosylase pinches the DNA, the damaged base becomes exposed due to the unstable bond, and the glycosylase cleaves off the base leaving the deoxyribose phosphate moiety attached to the rest of the strand. Different glycosylases exist to detect different types of damage. ������������������������������������������������������������������������

2)          An endonuclease then breaks the single strand of DNA on the 5� side of the base- free deoxyribose moiety.

3)          The deoxy ribose moiety is then excised by an exonuclease.

4)          A DNA polymerase then fills in the gap with the correct base using the undamaged strand as a template.

5)          A DNA ligase rejoins the phosphodiester backbone of the repaired strand.

In some organism these five steps are performed by five separate proteins. In other organisms, some proteins are capable of performing multiple roles. This subsystem represents an on-going exploration of the types of damage each organism can detect, which organisms possess multi-functional roles, as well as the possibility of alternate roles for different conditions and/or redundancy. It is very likely that many of these genomes possess proteins not contained in this subsystem that are capable of detecting other types of damage, or performing the next four steps of this subsystem.

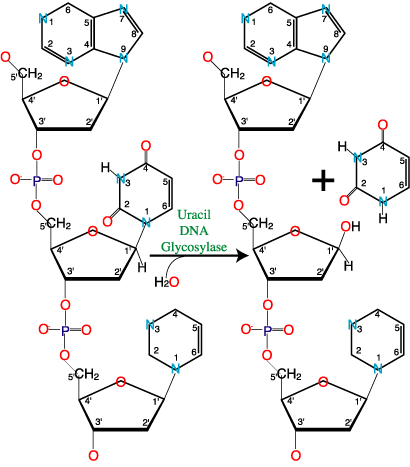

Uracil DNA-N glycosylase

drawing from: http://saturn.roswellpark.org/cmb/huberman/DNA_Repair/ber.html



The table below defines the specific roles of the BER subsystem.



Abbreviation

Functional Role

gly1

Formamidopyrimidine-DNA glycosylase (EC 3.2.2.23)

gly2

Uracil-DNA glycosylase (EC 3.2.2.-)

gly3

DNA-3-methyladenine glycosylase (EC 3.2.2.20)

gly4

DNA-3-methyladenine glycosylase II (EC 3.2.2.21)

End1

Endonuclease III (EC 4.2.99.18)

End2

Endonuclease VIII

End3

Flap structure-specific endonuclease (EC 3.-.-.-)

Exo1

Exodeoxyribonuclease I (EC 3.1.11.1)

Exo2

Single-stranded-DNA-specific exonuclease recJ (EC 3.1.-.-)

pol1

DNA polymerase I (EC 2.7.7.7)

pol2

DNA polymerase II (EC 2.7.7.7)

Lig1

ATP-dependent DNA ligase (EC 6.5.1.1)

Lig2

DNA ligase (EC 6.5.1.2)



Variant Codes



#1. Genomes with a variant code of 1,2,3,4 all have the ability to detect at least one type of damage to a base. Genomes with a variant code of 1 indicate that each role is performed by a separate enzyme.



Genome

ID

Org

Variant

Code

gly1

gly2

gly3

gly4

end1

end2

end3

exo1

exo2

pol1

pol2

lig1

lig2

93061.1

Staph Aureus NCTC 8325

1

724

1530

219



1582,

781







11,

1173,

179

725





1269



#2. Genomes with a variant code of 2 indicate having an endonuclease that is capable of also performing the role of the glycosylase and the exonuclease.



Genome

ID

Org

Variant

Code

gly1

gly2

gly3

gly4

end1

end2

end3

exo1

exo2

pol1

pol2

lig1

lig2

83333.1

E. coli K12

2

3571

2551



2044

1619

706



1985

2844

3784

61



2379,

3583



#3. Genomes with a variant code of 3 (archaeal)indicate this curator's speculation that perhaps the endonucleases in column 'end3' might also be capable of performing the role of an exonuclease and the polymerase based on the possible activities of the domains present as indicated by Psi-blast, 3'-5' phosphodiesterase and RNase H(reverse transcriptase) activity respectively. These proteins are also virtually the same length as eukaryotic polymerase B.**



Genome

ID

Org

Variant

Code

gly1

gly2

gly3

gly4

end1

end2

end3

exo1

exo2

pol1

pol2

lig1

lig2

224325.1

Archaeoglobus

DSM 4304

3







2103

1681,

378



261











1714,

616

1269



#4. Genomes with a variant code of 4 indicate this curator's speculation that perhaps the some of the polymerases in column "pol1" are capable of also performing as an exonuclease due to the catalytic domains present as indicated by Psi-blast. The proteins in column "pol1" of genomes with variant codes other than 4 should also be looked at for performing the exonuclease step as well.**��



Genome

ID

Org

Variant

Code

gly1

gly2

gly3

gly4

end1

end2

end3

exo1

exo2

pol1

pol2

lig1

lig2

243230.1

Deinococcus

radiodurans

4

675

871



2256,

2762

1111,

2617

471









1889





2251



**Further investigation of variant codes 3 and 4 are necessary.

Notes:

It should be also noted that in the literature the terms exonuclease and endonuclease are often used in place of one another. This curator believes exonuclease should only refer to activity that breaks the external or exposed bond between the 3'-carbon of the sugar and the 5'-phosphate, and endonuclease should only refer to activity that breaks the internal bond between the 5'-carbon of the sugar and 3'-phosphate on the other side of the apurinic/apyrimidinic site.

The number of additional nucleotides, adjacent to the damaged nucleotide, that may also be removed as part of the repair process depends on which enzyme performs the role, and should also be the subject of further study according to the following paper:

"The post-incision steps of the DNA base excision repair pathway in Escherichia coli: studies with a closed circular DNA substrate containing a single U:G base pair"

Margarita Sandigursky, Greg A. Freyer1, William A. Franklin*

Departments of Radiology and Radiation Oncology, Albert Einstein College of Medicine, 1300 Morris Park Avenue, Bronx, NY 10461, USA and 1Division of Environmental Health Science, Columbia University School of Public Health, 701 West 168th Street, New York, NY 10032, USA

Received October 27, 1997; Revised and Accepted January 8, 1998
